Item # bci877525

The Broan L200L has been discontinued

** See similar or replacement items below **

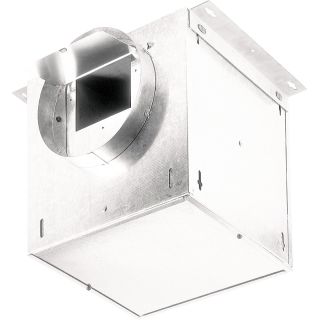

Broan 196 CFM 1.9 Sone In-Line Ventilator

Model: L200L

from the LoSone Select Collection
Discontinued
We still have product details and accessories, scroll down to see them!

Product Overview

Features:
  • Features a powerful 196 CFM permanently lubricated and sealed motor that's specifically designed for continuous use applications
  • Mounts directly to joists via mounting brackets which makes for an intuitive, straight-forward installation
  • Compatible with a number of Broan multi-function and time control wall switches (sold separately)
  • Not recommended for use over bathtubs and showers
Product Technologies:

Sones-medMid Sones: We know that comfort and ambience matter in your bathroom. This fan produces 1.9 sones of sound output, keeping the noise in your bathroom at a reasonable level.

CFM-highHigh CFM Capacity: This fan has an impressive 196 CFM (cubic feet per minute) of clearing capacity designed for larger bathrooms. Controlling humidity in your bathroom extends the life of your décor and makes for a more hospitable space to prepare for the day ahead.

Specifications:
  • CFM: 196
  • Sones: 1.6
  • Duct Size: 8 Inch Round
  • Housing Width: 12.25 Inches
  • Housing Length: 12.25 Inches
  • Housing Depth: 11.75 Inches
  • HVI Certified: No
  • UL Listed: Yes
  • Light Included: No
Product Variations:
  • L200L (This Model): 195 CFM
  • L250L: 245 CFM
  • L300L: 293 CFM

This product is listed under the following manufacturer number(s):


*Denotes a finish or option that has been discontinued.

Dimensions and Measurements

CFM
196
CFM (High)
196
Duct Size
8" Round
Housing Depth
11.75 in.
Housing Length
12.25 in.
Housing Width
12.25 in.
Max Ventilation Area
178 sq. ft.
Product Weight
23.1 lbs.

Included Components

Heater Included
No
Light Included
No
Motion Sensor
No

Characteristics and Features

Duct Discharge
Horizontal
Function
In-Line
Grille Finish
No Grille
Humidity Sensing
No
Installation Type
In-Line
Material
Metal
Night Light
No

Electrical and Operational Information

Amperage
1.8
Sones
1.6
Speeds
1
Voltage
120
Wattage
127

Warranty and Product Information

Approved for Commercial Use
No, Yes
Certifications
UL
Collection
High Capacity
Country Of Origin
USA
Energy Star
No
Made in America
Yes
Manufacturer Warranty
1 Year Limited
