Item # bci3490098

The KOBE CXX8136QF-GBK-1 has been discontinued

** See similar or replacement items below **

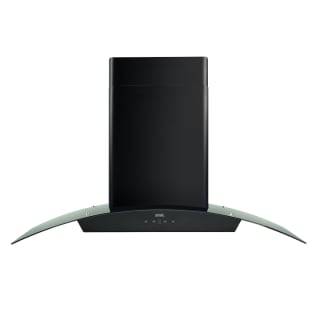

KOBE 310 - 600 CFM 36 Inch Wide Wall Mounted Range Hood with LED Lighting

Model: CXX8136QF-GBK-1

from the Brillia Collection
Discontinued
We still have product details and accessories, scroll down to see them!

Product Overview

Features:

  • QuietMode for air movement at low sound levels
  • Single centrifugal motor
  • Electronic control with digital display and delay shut-off feature
  • 6 fan speeds from 310 CFM at 2 sones, up to 600 CFM at 5 sones
  • 6 inch round vertical exhaust
  • Two 3W LEDs to illuminate cooking surface
  • Dishwasher safe professional aluminum mesh filter
  • Wall mount design with glass canopy
  • Designed to allow fan cleaning without disassembling range hood
  • Designed for simple installation
  • For use with ceilings between 7 and 8 feet high

Specifications:

  • CFM: 310, 360, 410, 480, 540, 600
  • Sones: 2, 3, 3.5, 4, 4.5, 5
  • Speeds: 6
  • Duct Size: 6" Round
  • Duct Discharge: Vertical
  • Bulb Type: LED
  • Width: 35-7/16"
  • Depth: 19-11/16"
  • Height: 33-3/8"
  • Ceiling Height: 84" to 96"
  • Height Above Cooktop: 26" to 30"
  • Voltage: 120v
  • Wattage: 180
  • Watts Per Bulb: 3

This product is listed under the following manufacturer number(s):


*Denotes a finish or option that has been discontinued.

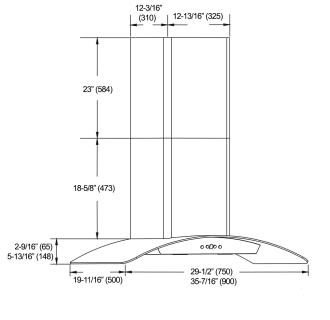

Dimensions and Measurements

Ceiling Height (Max)
96 in.
Ceiling Height (Min)
84 in.
CFM
310, 360, 410, 480, 540, 600
CFM (High)
600
Depth
19.688 in.
Duct Size
6" Round
Height
33.375 in.
Height Above Cooktop
26" to 30"
Nominal Width
36 in.
Product Weight
43 lbs.
Width
35.438 in.

Included Components

Available Without Blower
No
Blower
Yes
Convertible to Ductless / Recirculating
No
Ductless
No
Includes Remote
No
Light Included
Yes

Characteristics and Features

Blower Type
Built-In
Bulb Type
LED
Control Type
Electronic
Display Type
Digital
Duct Discharge
Vertical
Filter Type
Mesh Filters
Installation Type
Full Installation
Material
Steel
Number of Bulbs
2
Panel Ready
No
Smart Home
No

Electrical and Operational Information

Amperage
1.5
Frequency
60 Hertz
Sones
2, 3, 3.5, 4, 4.5, 5
Speeds
6
Voltage
120
Wattage
180
Watts Per Bulb
3

Warranty and Product Information

ADA
No
Approved for Commercial Use
No
Certifications
ETL
Collection
Brillia
Country Of Origin
China
Energy Star
No
Manufacturer Warranty
1 Year Labor, 2 Year Parts
Outdoor Approved
No
Title 24
No
