Item # bci3456879
The Noritz GHQ-C3201WX-FF US NG has been discontinued
** See similar or replacement items below **

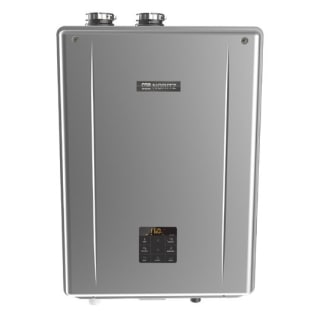

Noritz 11.1 GPM 199000 BTU 95% AFUE Direct Vent Natural Gas Combination Boiler / Combi Boiler
Model: GHQ-C3201WX-FF US NG
Discontinued
Product Overview
Features:
- Provides home and hot water heating conveniently in a single, energy efficient unit
- 304 stainless steel heat exchangers enable higher corrosion resistance to promote product longevity and durability
- Wall-mountable, compact design for ease of installation and integration into any home's aesthetic
- Ideal temperature ranges from 90°F-140°F in domestic mode and 80°F-180°F in heating mode
- Includes the required wall mounting bracket, outdoor temperature sensor, and heating pressure relief valve for your convenience
- Professional installation recommended to align with local codes and regulations
- 1 year labor, 5 year parts, and 12 year heat exchanger manufacturer warranties included
Product Technologies:
- Simultaneous Operation of DHW and Heating: These simultaneous capabilities are easy to control and especially beneficial for applications that do not store or deliver heat energy efficiently. A user can, for example, take a shower without worrying about experiencing a corresponding drop in room temperature.
- Ultra Low Emissions: This unit far exceeds the toughest emissions standards. It's fully modulating burner has a nitrogen-oxide emissions level of only 14 parts per million (ppm), far below the South Coast Air Quality Management District requirement of 20 ppm.
Specifications:
- Height: 27"
- Width: 18-1/2"
- Depth: 12-13/16"
- Material: Stainless Steel
- Application: Combination
- Fuel Type: Natural Gas
- Vent Type: Direct Vent
- Vent Pipe Size: 2", 3"
- Vent Maximum Run: 60', 100'
- Energy Star: Yes
Combination Boiler, Combi Boiler, Dual Boiler
Additional Noritz Links
This product is listed under the following manufacturer number(s):
- Noritz GHQ-C3201WX-FF US NG*
Natural Gas
*Denotes a finish or option that has been discontinued.
Manufacturer Resources
Dimensions and Measurements
Capacity (Gallons)
2
Depth
12.8 in.
Gas Connection
3/4"
Height
27 in.
Maximum Flow Rate
9.8 GPM
Water Connection
3/4"
Water Pressure (Max)
150 PSI
Water Pressure (Min)
15 PSI
Width
18.5 in.
Characteristics and Features
Configuration
Tankless Water Heater
Heater Type
Boiler
Heating Technology
Non-Condensing
Indoor Installation
Yes
Electrical and Operational Information
Amperage
1.75
Frequency
60 Hertz
Fuel Type
Natural Gas
Gas Type
Natural Gas
Ignition Type
Electronic
Max BTU Input
199900
Maximum Temperature
140
Temperature (Max)
140 °F
Temperature (Min)
100 °F
Voltage
120
Warranty and Product Information
Certifications
ASME, CSA
Energy Star
Yes
Product Variation
Whole House Water Heater, Combination Boiler
