Item # bci3515343

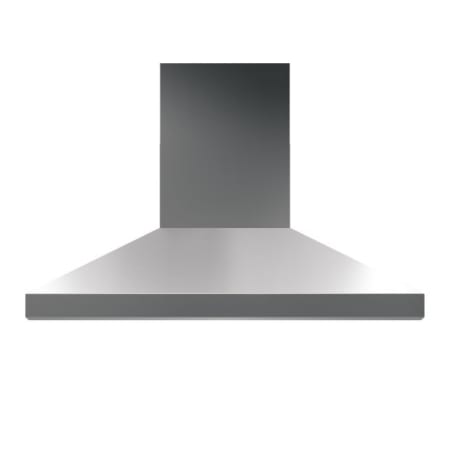

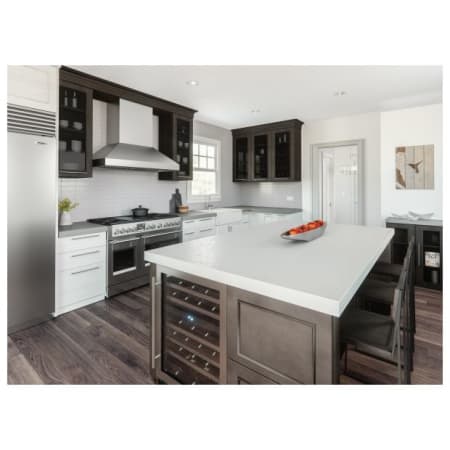

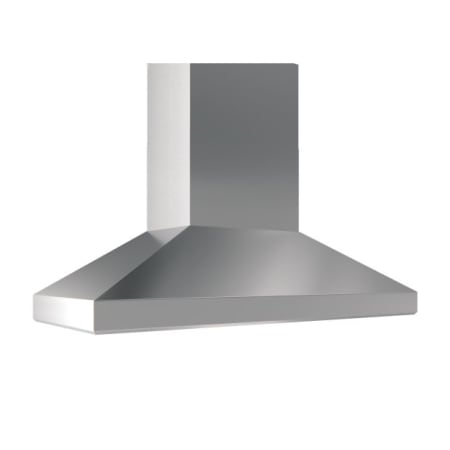

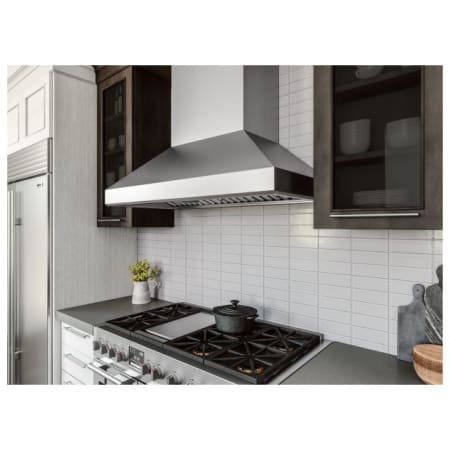

Zephyr Titan 290 - 750 CFM 54 Inch Wide Wall Range Hood

Model: AK7654AS

from the Titan Collection
$2,799.00
Finish: Choose Finish
  • Stainless Steel
  • Stainless Steel
    Stainless Steel
    $2,799.00
    Special Order

Installed Width: 54 Inches

36 Inches48 Inches
54 Inches
60 Inches

Free Shipping!

Leaves the Warehouse in 10 to 15 weeks
Special Order
Configure Your Zephyr AK7654A Titan 290 - 750 CFM 54 Inch Wide Wall Range Hood

  • Wireless Remote

    Please Select One
$2,799.00

Product Overview

This product has additional required/recommended options. To configure, add to your cart.

  • Backsplash
    Backsplash Recommended
  • Blower
    Blower Recommended
  • Duct Cover Extension
    Duct Cover Extension Recommended
  • Make Up Air Kit
    Make Up Air Kit Recommended
  • Remote
    Remote Recommended

Features:

  • This range hood is good for a variety of uses with its 290, 390, 590 and 750 CFM options
  • Baffle filters are removable and dishwasher safe
  • Included LED lighting helps illuminate your cooktop
  • Electronic LCD controls are intuitive and easy to use
  • Covered by a 1 year labor, 3 year parts manufacturer warranty

Product Technologies:

  • Zephyr PowerWave™ is designed to deliver best-in-class performance with unparalleled quiet operation, it is a breakthrough in kitchen technology. The first range hood blower with three-phase AC power, PowerWave™ has unique aerodynamic blades to help move up to 750 CFM of air while minimizing noise and improving efficiency. PowerWave™ is also versatile by allowing you to combine two blowers together to achieve 1,300 CFM, making it the most powerful dual-internal blower on the market

Specifications:

  • CFM: 290, 390, 590
  • Sones: 7, 8
  • Speeds: 6
  • Duct Size: 10" Round, 8" Round
  • Duct Discharge: Horizontal, Vertical
  • Width: 53-7/8"
  • Depth: 24"
  • Height: 30"
  • Height Above Cooktop: 24" to 36"
  • Voltage: 120

This product is listed under the following manufacturer number(s):

Dimensions and Measurements

Ceiling Height (Max)
108 in.
Ceiling Height (Min)
96 in.
CFM
200, 290, 390, 590, 750
CFM (High)
750
Depth
24 in.
Duct Size
10" Round, 8" Round
Height
30 in.
Height Above Cooktop
24" to 36"
Maximum Height
42.5 in.
Minimum Height
30 in.
Nominal Width
54 in.
Width
53.875 in.

Included Components

Available Without Blower
No
Bulb Included
Yes
Convertible to Ductless / Recirculating
Yes
Includes Remote
No
Light Included
Yes

Characteristics and Features

Adjustable Height
Yes
Blower Type
Internal
Bulb Type
LED
Control Type
Touch
Duct Discharge
Horizontal, Vertical
Filter Type
Baffle Filters
Installation Type
Full Installation
Number of Bulbs
4
Smart Home
No

Electrical and Operational Information

Auto Shut Off
Yes
Sones
7, 8
Speeds
6
Voltage
120
Watts Per Bulb
6

Warranty and Product Information

ADA
Yes
Approved for Commercial Use
No
Collection
Titan
Manufacturer Warranty
1 Year Labor, 3 Year Parts
Outdoor Approved
No
