Item # bci3515326

The Zephyr ZRE-M90ABSGG has been discontinued

** See similar or replacement items below **

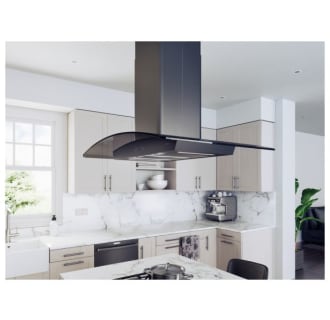

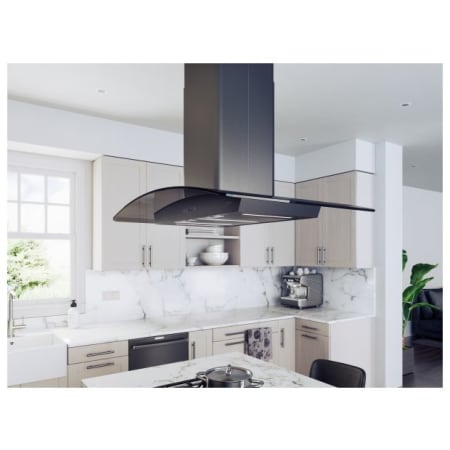

Zephyr Ravenna 290 - 390 CFM 36 Inch Wide Range Hood

Model: ZRE-M90ABSGG

from the Ravenna Collection
Discontinued
We still have product details and accessories, scroll down to see them!

Product Overview

This product has additional required/recommended options. To configure, add to your cart.

  • Carbon Filters
    Carbon Filters Recommended
  • Duct Cover Extension
    Duct Cover Extension Recommended
  • Make Up Air Kit
    Make Up Air Kit Recommended
  • Recirculating Kit
    Recirculating Kit Recommended

Features:

  • This range hood is good for a variety of uses with its 290 and 390 CFM options
  • Mesh filters are removable and dishwasher safe
  • Included LED lighting helps illuminate your cooktop
  • Touch controls are intuitive and easy to use
  • Covered by a 1 year labor, 3 year parts manufacturer warranty

Product Technologies:

  • ACT ™: an exclusive technology that gives builders and developers the freedom to install range hoods with maximum blower CFM, without having to compromise power or design
  • The ICON Touch™ Controls seamlessly integrate into the hood’s stainless steel canopy and contribute to the hood’s sleek aesthetic. Homeowners can easily control the 5-speeds, delay-off function, auto reminders and Airflow Control Technology (ACT ™: an exclusive technology that gives builders and developers the freedom to install range hoods with maximum blower CFM, without having to compromise power or design
  • The future just got brighter. BriteStrip™ LED lighting includes key features such as being dimmable, lasts 25,000 hours, has a 3,000K warm white color and evenly distributes light over your cooking surface.

Specifications:

  • CFM: 290, 390
  • Sones: 6
  • Speeds: 5
  • Duct Size: 6" Round
  • Duct Discharge: Vertical
  • Width: 35-3/16"
  • Depth: 25-9/16"
  • Height: 28-1/2"
  • Height Above Cooktop: 26" to 34"
  • Voltage: 120

This product is listed under the following manufacturer number(s):


*Denotes a finish or option that has been discontinued.

Dimensions and Measurements

CFM
290, 390
CFM (High)
390
Depth
25.5625 in.
Duct Size
6" Round
Height
28.5 in.
Height Above Cooktop
26" to 34"
Maximum Height
38 in.
Minimum Height
28.5 in.
Nominal Width
36 in.
Width
35.1875 in.

Included Components

Available Without Blower
No
Bulb Included
Yes
Convertible to Ductless / Recirculating
Yes
Includes Remote
No
Light Included
Yes

Characteristics and Features

Adjustable Height
Yes
Blower Type
Internal
Bulb Type
LED
Control Type
Touch
Duct Discharge
Vertical
Filter Type
Mesh Filters
Installation Type
Full Installation
Number of Bulbs
2
Smart Home
No

Electrical and Operational Information

Amperage
4
Auto Shut Off
Yes
Sones
6
Speeds
5
Voltage
120
Watts Per Bulb
9

Warranty and Product Information

ADA
No
Approved for Commercial Use
No
Collection
Ravenna Island
Manufacturer Warranty
1 Year Labor, 3 Year Parts
Outdoor Approved
No
Title 20 Compliant
Yes
